IOC4T 200-560-000-113
제품 상세 정보
| 모듈 번호 | IOC4T | 순서화 개수 | 200-560-000-113 |
|---|---|---|---|
| 상태 | 재고 있음 | 무게 | 1KG |
| 리드타임 | 3-5 영업일 | 상표 | 다른 |
| 기원 | 중국 | 판매가 | $ 1400 |
| 보증 | 1년 |
제품 설명

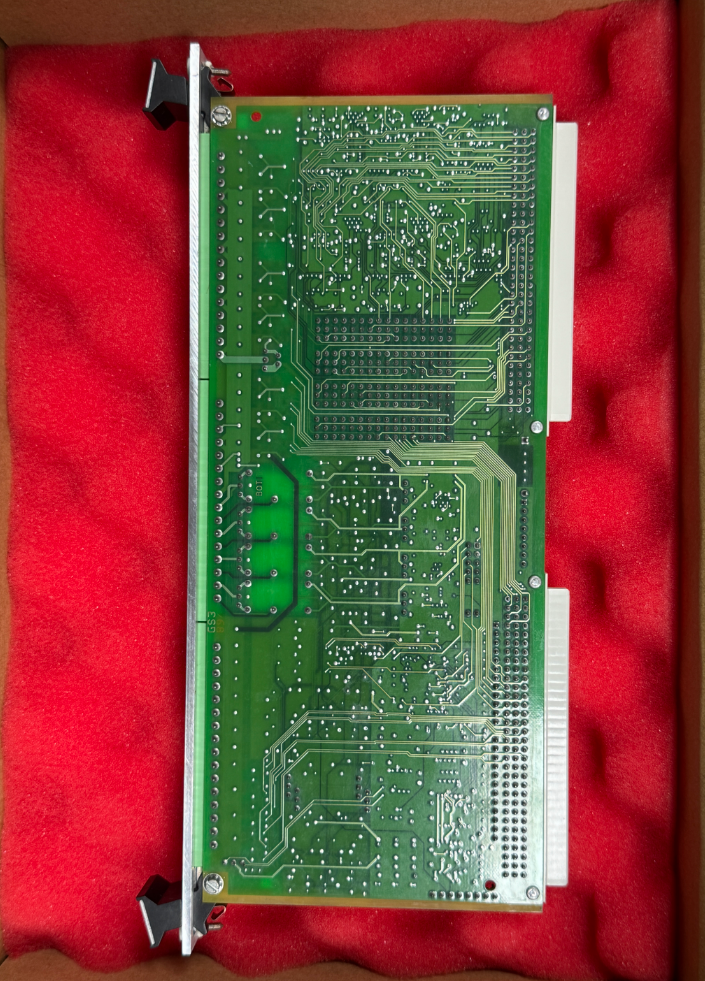

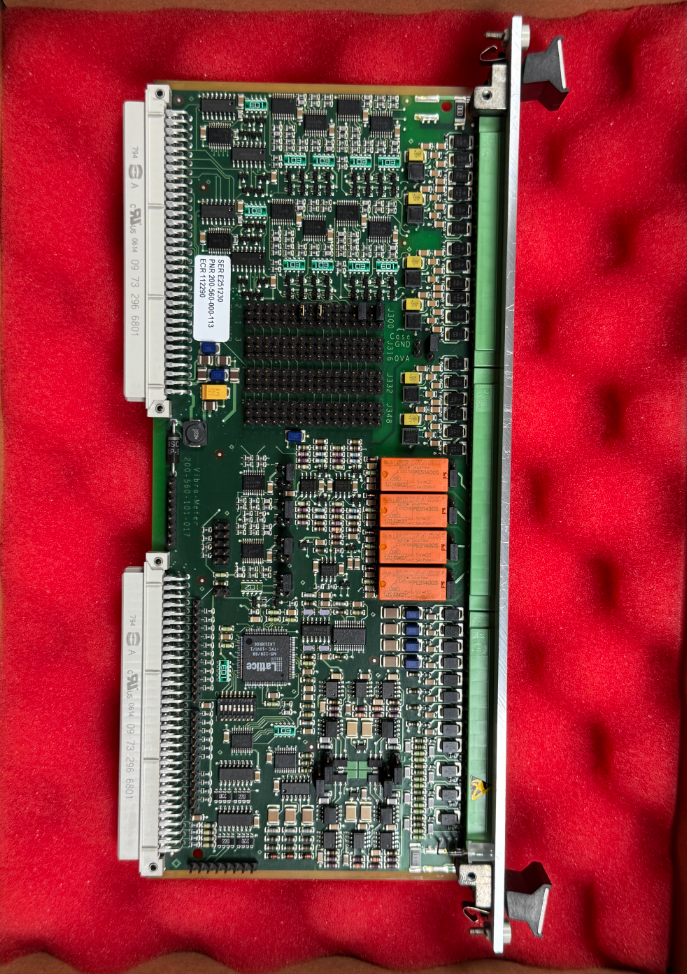

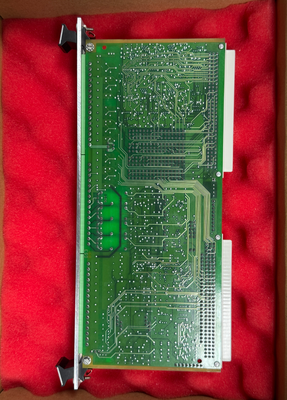

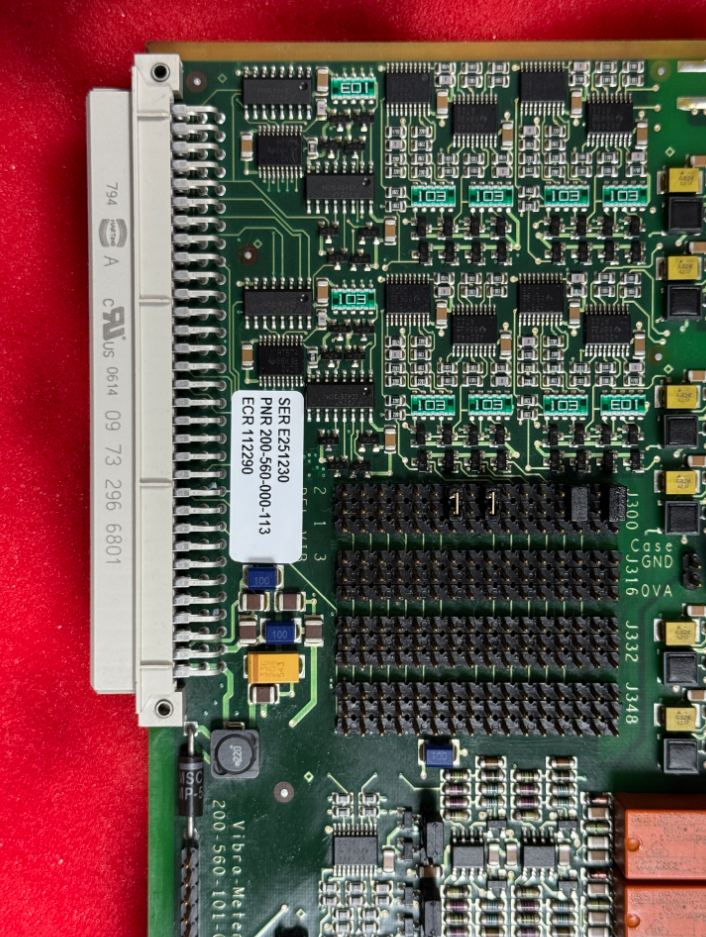

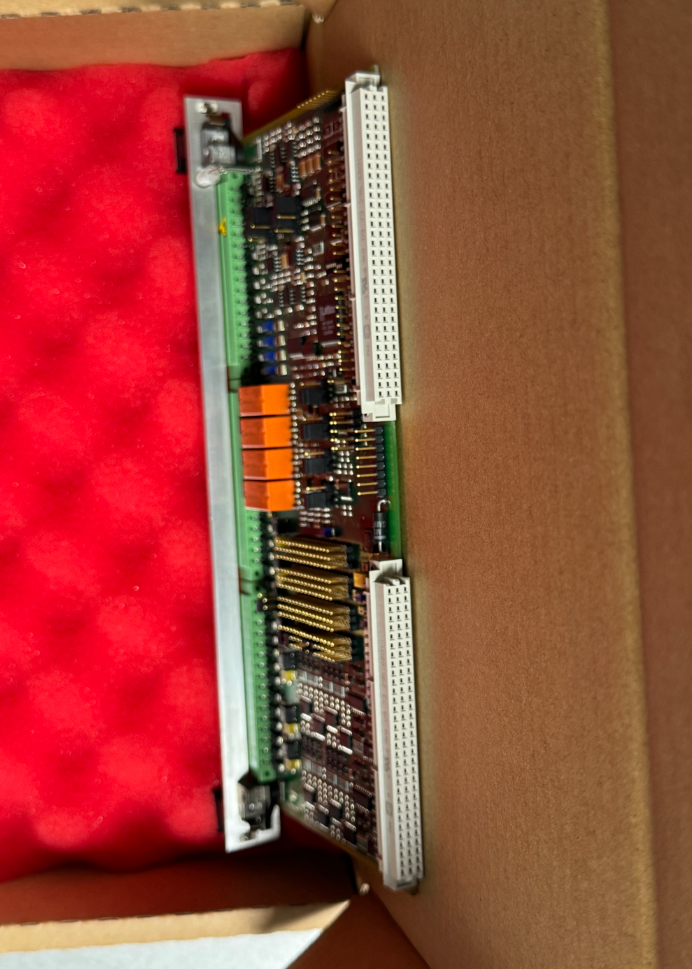

IOC4T 200-560-000-113
| Brand Name | Other |
| Model | IOC4T |
| Ordering Information | 200-560-000-113 |
| Catalog | I/O Card |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1400 |
| Warranty | 12 months |
| Lead Time | 3-5 work days |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Technical Features
- Operating Temperature: −25°C to +65°C
- Storage Temperature: −40°C to +85°C
- Operating Humidity: 0 to 90% (non-condensing)
- Storage Humidity: 0 to 95% (non-condensing)
- Power Supply: +5 VDC and ±12 VDC (from VM600 rack power supply)
- Power Consumption: +5 VDC: 1.5 W; ±12 VDC: 0.7 W + 0.25 W per current output channel
Product Description
The IOC4T 200-560-000-113 is an input/output interface daughter card specifically designed for mechanical protection systems. It is an early, non-RoHS version of the standard IOC4T model, with a buffered dynamic signal output impedance of 2000Ω. It is used in pairs with the MPC4 mechanical protection motherboard and serves as the core signal relay card for connecting unit vibration and speed monitoring signals and outputting alarms. Later versions (PNR 200-560-000-114 and later) are RoHS-compliant, with the output impedance reduced to 50 Ω.

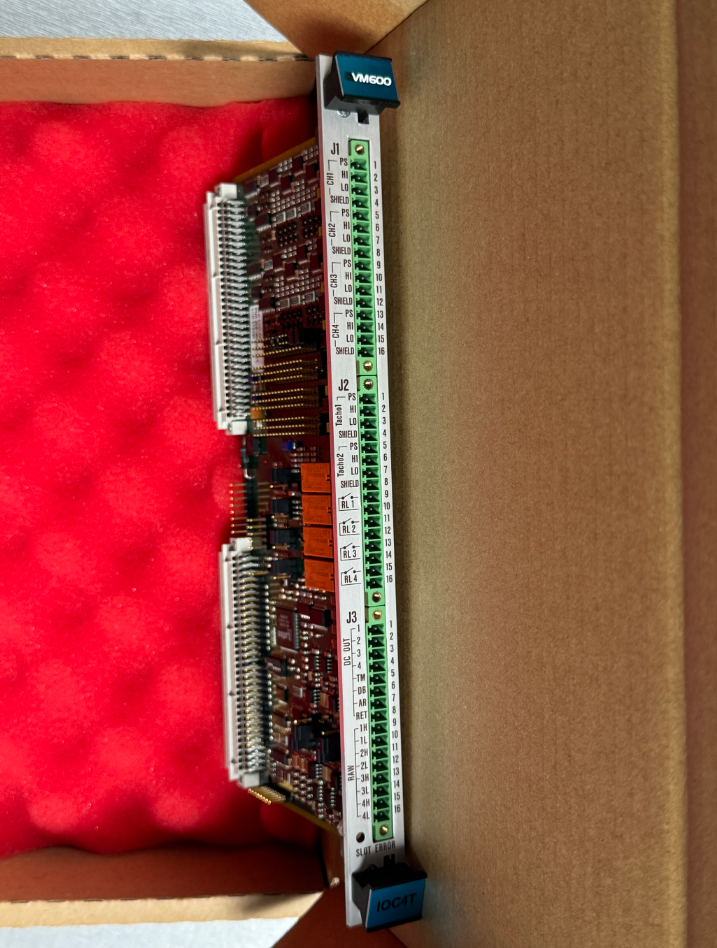

This card operates in Slave Mode and communicates with the corresponding MPC4 card via the Industry Pack (IP) interface through the P2 connector. Its front panel (located at the rear of the ABE04x or ABE056 rack) is equipped with a 48-pin screw terminal connector for connecting transmission cables from the measurement chain (sensors and/or signal conditioners), as well as for signal input and output to and from external control systems.
IOC4T Card Model Selection and Comparison
| Model Order Number | Circuit Version | Output Impedance | RoHS Compliance |
|---|---|---|---|
| 200-560-000-113 | Standard Circuit | 2000Ω | No |
| 200-560-000-213 | Isolation Circuit | 2000Ω | No |
| 200-560-000-114 and beyond | Standard Circuit | 50Ω | Yes |
Case Study
In power plants and compressor stations, the IOC4T 200-560-000-113 is used to process speed signals from magnetoresistive sensors, optical encoders, and laser sensors, enabling speed monitoring with nanosecond-level precision. With an overspeed response time of less than 10 ms and programmable threshold triggering, it provides precise order tracking analysis for turbines and compressors.
Routine Maintenance Procedures
- The IOC4T card supports hot-swapping, so there is no need to shut down the system when replacing cards.
- The rack typically does not require special cleaning. If cleaning is necessary, wipe it down with a dry cloth only. Do not use wet cloths or chemical cleaners.
- Periodically inspect the cards for damage or abnormalities.
- Monitor status indicators such as the SLOT ERROR LED.
- Document the details of each maintenance session.
Frequently Asked Questions
Can the IOC4T 200-560-000-113 be used on its own?
No. The IOC4T card must be paired with the MPC4 mechanical protection card; together, they form an inseparable card pair.
What types of sensors does the IOC4T 200-560-000-113 support?
It supports a variety of types, including eddy current probes, magnetoresistive sensors, optical encoders, laser speed sensors, accelerometers, and speed sensors.
How can I tell if the IOC4T card is installed in the correct slot?
The IOC4T card uses an electronic keying mechanism to prevent installation in the wrong slot. Additionally, the SLOT ERROR LED on the card indicates whether the slot is correct.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
