GSI127 244-127-000-017 A2-B02
제품 상세 정보
| 모듈 번호 | GSI127 244-127-000-017 | 순서화 개수 | A2-B02 |
|---|---|---|---|
| 상태 | 재고 있음 | 무게 | 1KG |
| 리드타임 | 3-5 영업일 | 상표 | 다른 |
| 기원 | 중국 | 판매가 | $ 2000 |
| 보증 | 1년 | ||
| 강조하다 | MEGT VBM A2-B02 component,GSI127 industrial part,244-127-000-017 replacement module |
||
제품 설명

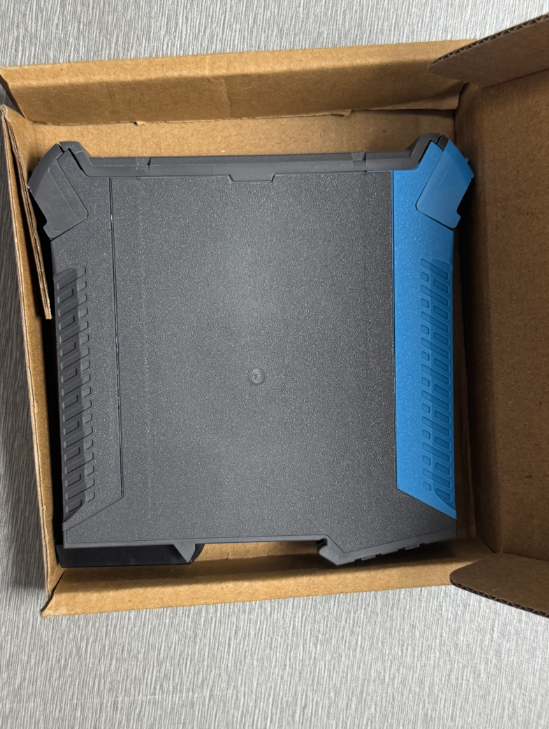

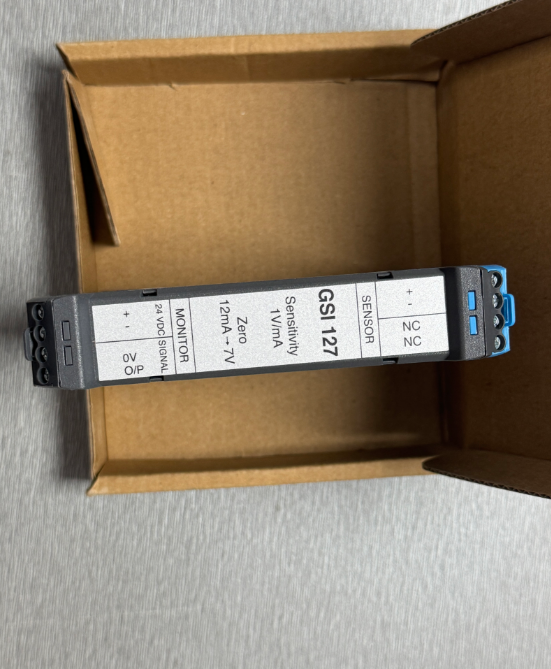

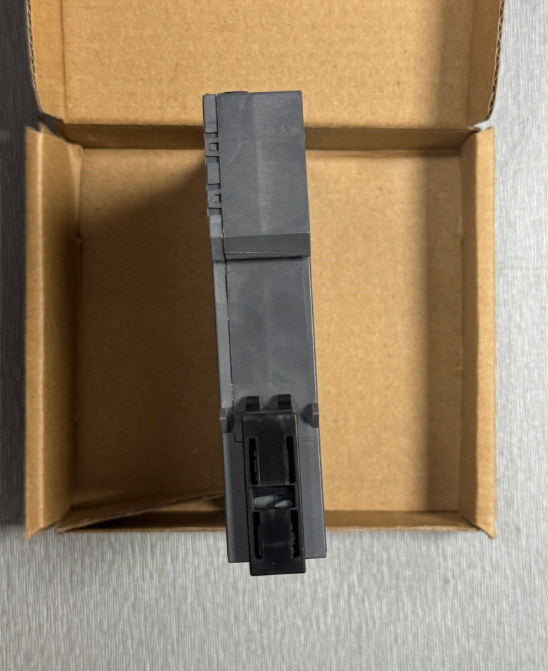

GSI127 244-127-000-017 A2-B02 Galvanic Separation Unit
Key Features
- High-level electrical isolation: Provides 4 kV RMS isolation between sensor and monitoring sides, and 50 V RMS isolation between power supply and output signal

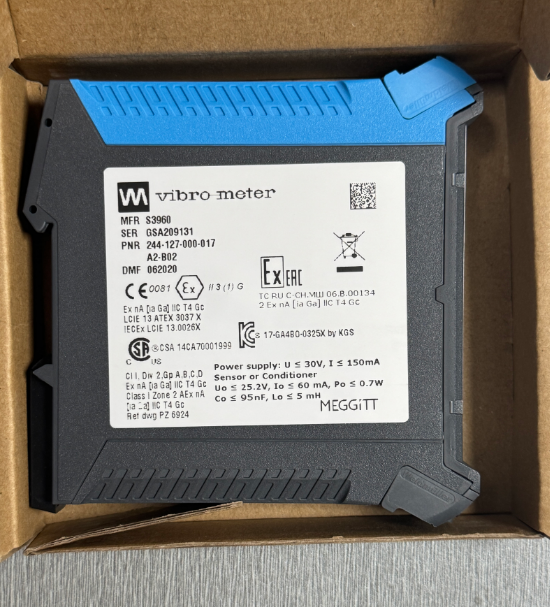

- Intrinsic safety certification: Holds ATEX and IECEx certifications; suitable for Zone 2 environments and capable of powering Zone 0 sensors
- High interference immunity: Effectively suppresses rack voltage to ensure measurement signal accuracy
- Flexible installation: Features standard DIN-rail mounting and pluggable screw terminals
- Wide-bandwidth response: Supports signal transmission from DC to 20 kHz (±0.5 dB)

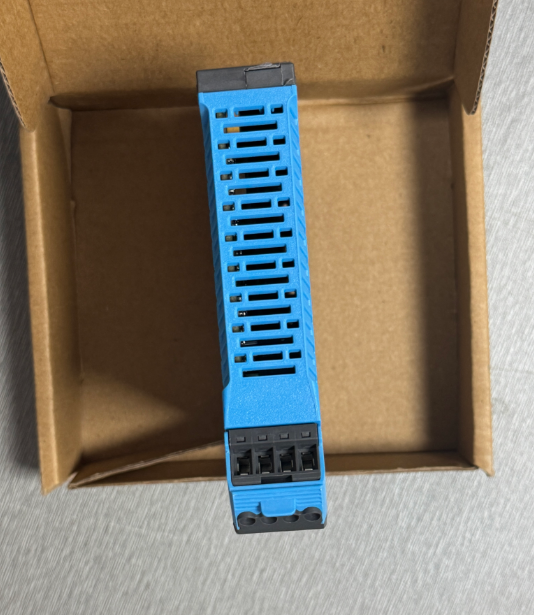

- Status indication: Ex-certified versions feature blue terminals for easy identification
Product Description
The GSI127 244-127-000-017-A2-B02 is a high-performance galvanic separation unit designed to connect signal conditioners, charge amplifiers, and sensors within various measurement chains. It provides up to 4 kV RMS electrical isolation between the sensor side and monitoring side, effectively blocking ground loops and filtering out rack voltage interference of up to 50 V RMS, thereby ensuring signal integrity and stability.
Product Specifications
| Brand Name | Other |
| Model | GSI127 244-127-000-017 |
| Ordering Information | A2-B02 |
| Catalog | Galvanic Separation Units |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $2000 |
| Warranty | 12 months |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Ordering Information
Product Advantages
| Advantage | Description |
|---|---|
| High isolation voltage | 4 kVRMS sensor-to-monitor isolation + 50 VRMS power-to-output isolation |
| Common-mode rejection | Effectively eliminates ground loop noise and AC noise pickup |
| Explosion-proof certification | Suitable for Zone 2 installation; capable of powering Zone 0 devices |
| SIL 2 capability | Suitable for functional safety applications (IEC 61508) |
| Built-in diagnostics | Automatic remote indication of measurement chain health |
| Flexible configuration | Multiple sensitivity/zero-point options to suit various sensors |
| Easy installation | DIN-rail mounting + pluggable terminals |
| Wide operating temperature | -40°C to +85°C |
| High compatibility | Supports the full Vibro-Meter range and IEPE standard sensors |
| No external power supply required | Floating output design; eliminates the need for APF19x |
Case Study
In the compressor monitoring system of an offshore natural gas platform, vibration sensors are mounted directly onto the compressor unit—an area subject to stringent explosion-proof requirements (Zone 0). The GSI127 A2-B02 unit is installed within a relatively safe control cabinet (Zone 2). It serves a dual purpose: providing intrinsically safe power to the IPC707 unit in the Zone 0 area and receiving the 4-20 mA vibration signal output by the IPC707. It converts this signal into a 7-19 V voltage signal and transmits it—via electrical isolation and without interference—to the downstream monitoring system and PLC, thereby ensuring both the safety of the monitoring loop and signal integrity within the hazardous environment.
Frequently Asked Questions
What distinguishes the GSI127 from standard isolators?
The GSI127 is a comprehensive signal interface module designed specifically for industrial vibration, pressure, and proximity measurement chains. It offers not only high-level electrical isolation (4 kVRMS) but also signal conversion capabilities (μA -> mV or V -> V), frame voltage suppression, built-in diagnostics, and explosion-proof certification.
What is the difference between the A2 and A1 versions?
The A2 is an explosion-proof (Ex) model suitable for potentially explosive environments, while the A1 is a standard model suitable for conventional industrial environments.
What malfunctions occur if the equipment's operating temperature exceeds 70°C?
Significant increases in zero-point and sensitivity thermal drift, leading to measurement errors exceeding specifications; extreme heat triggers internal overload protection, causing signal interruption. Ventilation and heat-dissipating rails must be installed to lower the temperature inside the cabinet.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
