4119A Invensys Triconex
제품 상세 정보
| 상표 | 인벤시스 트리코넥스 | 제품번호 | 4119A |
|---|---|---|---|
| 판매가 | $ 1800 | 상태 | 재고 있음 |
| 제품 원산지 | 미국 | 선적항 | 아모이 |
| 리드타임 | 2-3 영업일 | 보증 | 1년 |
| 무게 | 1KG |
제품 설명

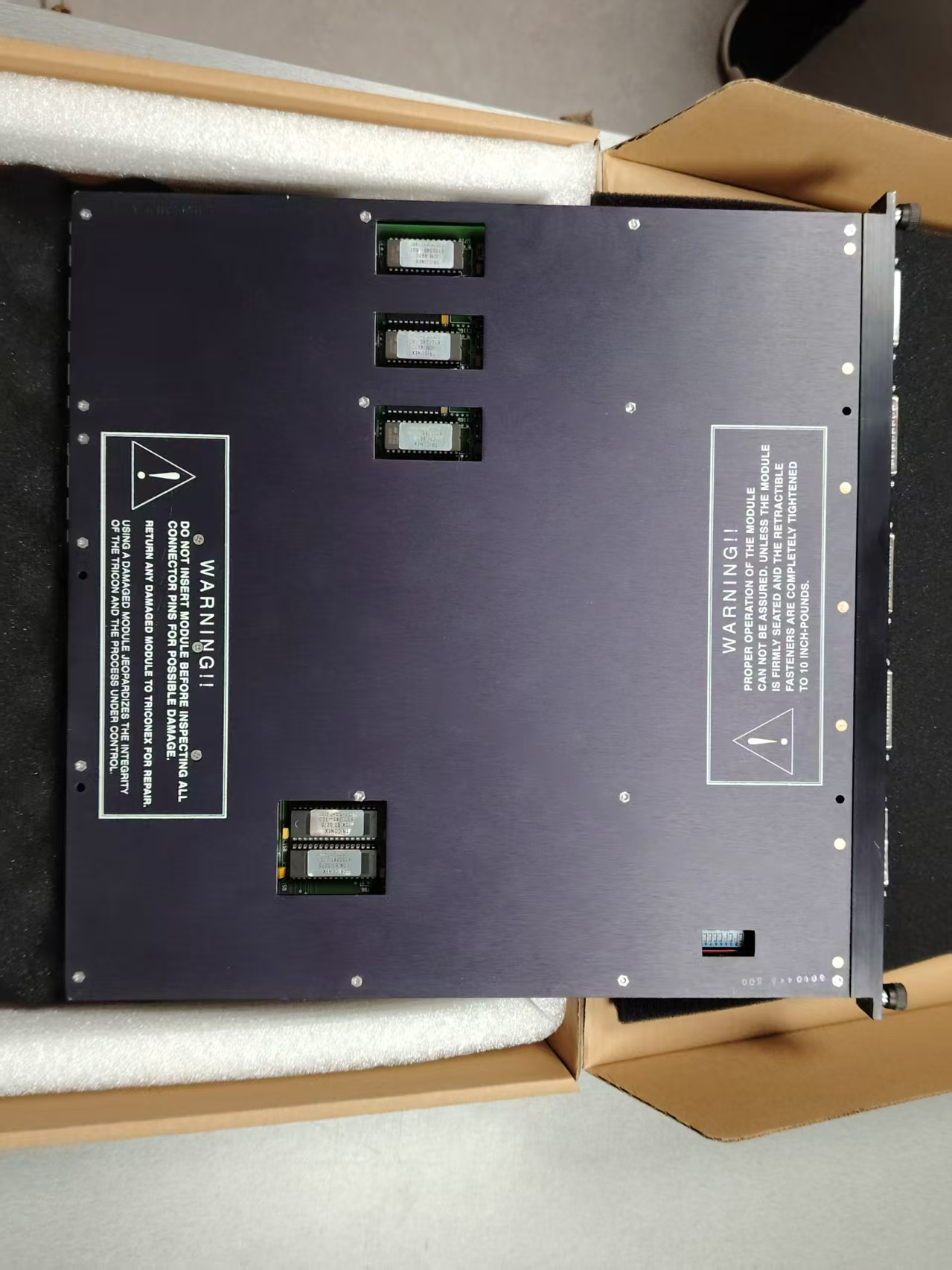

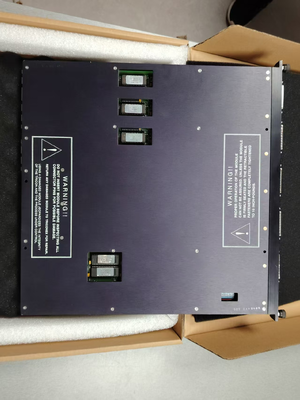

4119A Invensys Triconex
Product Overview
The TRICONEX 4119A is an Enhanced Intelligent Communication Module (EICM), an essential communication component in the Tricon Safety Instrumented System (SIS). This module is specifically designed for the Tricon SIS and is primarily used to facilitate data communication between Tricon controllers and external devices.
This module is a standard communication module for the Tricon v9, v10, and Trident platforms and meets the SIL 3 safety level requirements of the IEC 61508 standard. It plays a critical role in emergency shutdown, safety monitoring, and process control applications across industries such as petroleum, petrochemicals, power generation, and metallurgy. Its hot-swap capability and comprehensive diagnostic functions further ensure the safety and availability of critical industrial processes.
Key Features
- Compatible Systems: Tricon v9, v10, Trident SIS
- Product Type: Enhanced Intelligent Communication
- Safety Level: SIL 3 (compliant with IEC 61508)

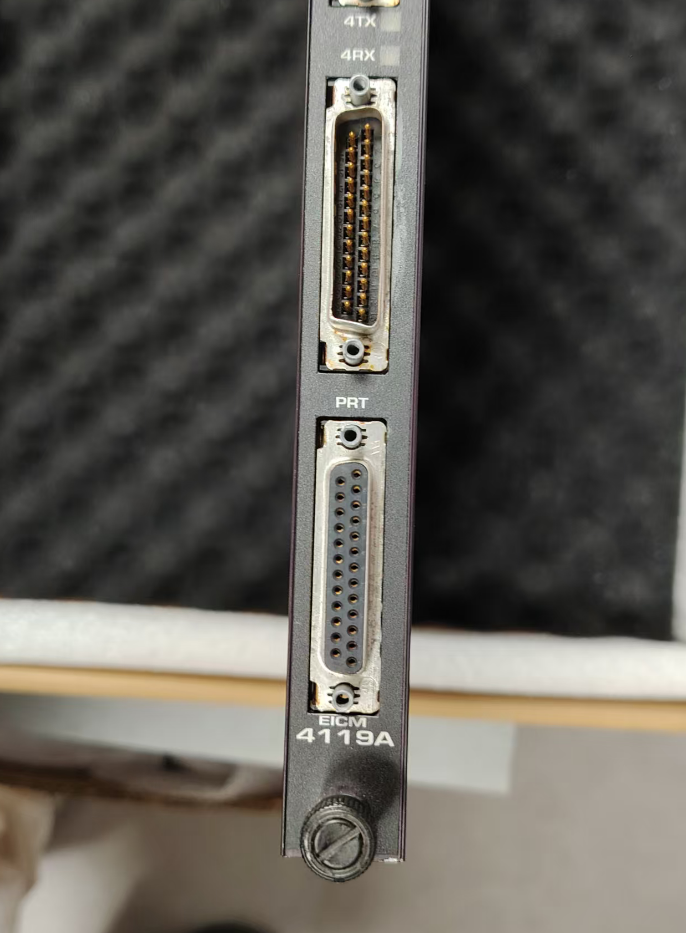

- Serial Ports: 4, configurable as RS-232/RS-422/RS-485
- Parallel Port: 1, Centronics interface
- Port Isolation: 500 V DC
- Communication Rates: 1200, 2400, 9600, 19200 bps
- Total Bandwidth: 57.6 kbps (total for all 4 serial ports)
- Supported Protocols: Modbus RTU/ASCII, TriStation
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% RH (non-condensing)
- Mounting: Tricon system rack mounting
EICM Specifications
Product Details
| Brand Name | Invensys Triconex |
| Model | Power Modules |
| Ordering Information | 4119A |
| Catalog | Tricon Systems |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 30 cm x 20 cm x 25 cm |
| Country of Origin | United States (USA) |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1800 |
| Warranty | 12 months |
| Lead Time | 3-5 work days |
Real-World Application Example
At a certain refinery, the 4119A module was installed in a logic slot on the main rack and connected via an RS-485 interface to the TriStation 1131 engineering station in the central control room. It is responsible for uploading the status of thousands of I/O points on the field to the control system in real time.
Frequently Asked Questions
Does the 4119A support hot-swapping?
The 4119A does not support the hot-spare feature. However, a faulty 4119A module can be replaced while the controller is online, without the need for downtime.
How many 4119A modules can be installed in a single Tricon system?
A single Tricon system supports up to 2 4119A modules, which must be installed in the same logical slot.
What is the total communication bandwidth of the 4119A?
The four serial ports of the 4119A support a combined data rate of 57.6 kbps. Each port can be independently configured to 1200, 2400, 9600, or 19200 bps.
Technical Documentation
