EC318 922-318-000-002/5000
제품 상세 정보
| 상표 | 다른 | 모듈 번호 | EC318 |
|---|---|---|---|
| 순서화 개수 | 922-318-000-002/5000 | 판매가 | $ 600 |
| 상태 | 재고 있음 | 기원 | 중국 |
| 리드타임 | 3-5 영업일 | 보증 | 1년 |
| 무게 | 1KG |
제품 설명

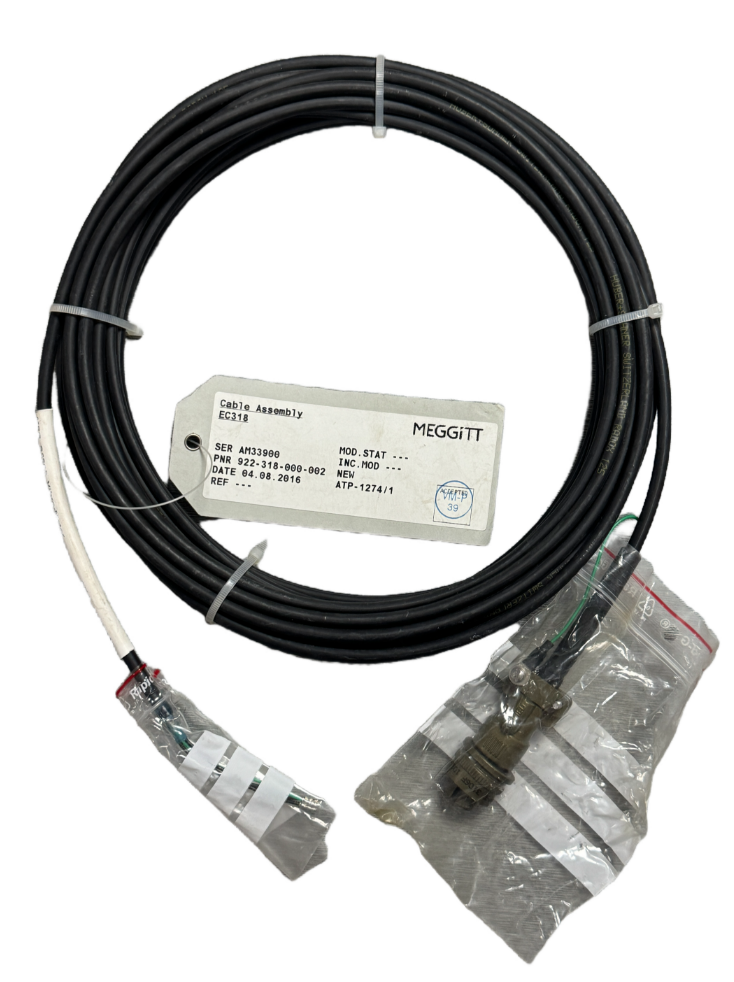

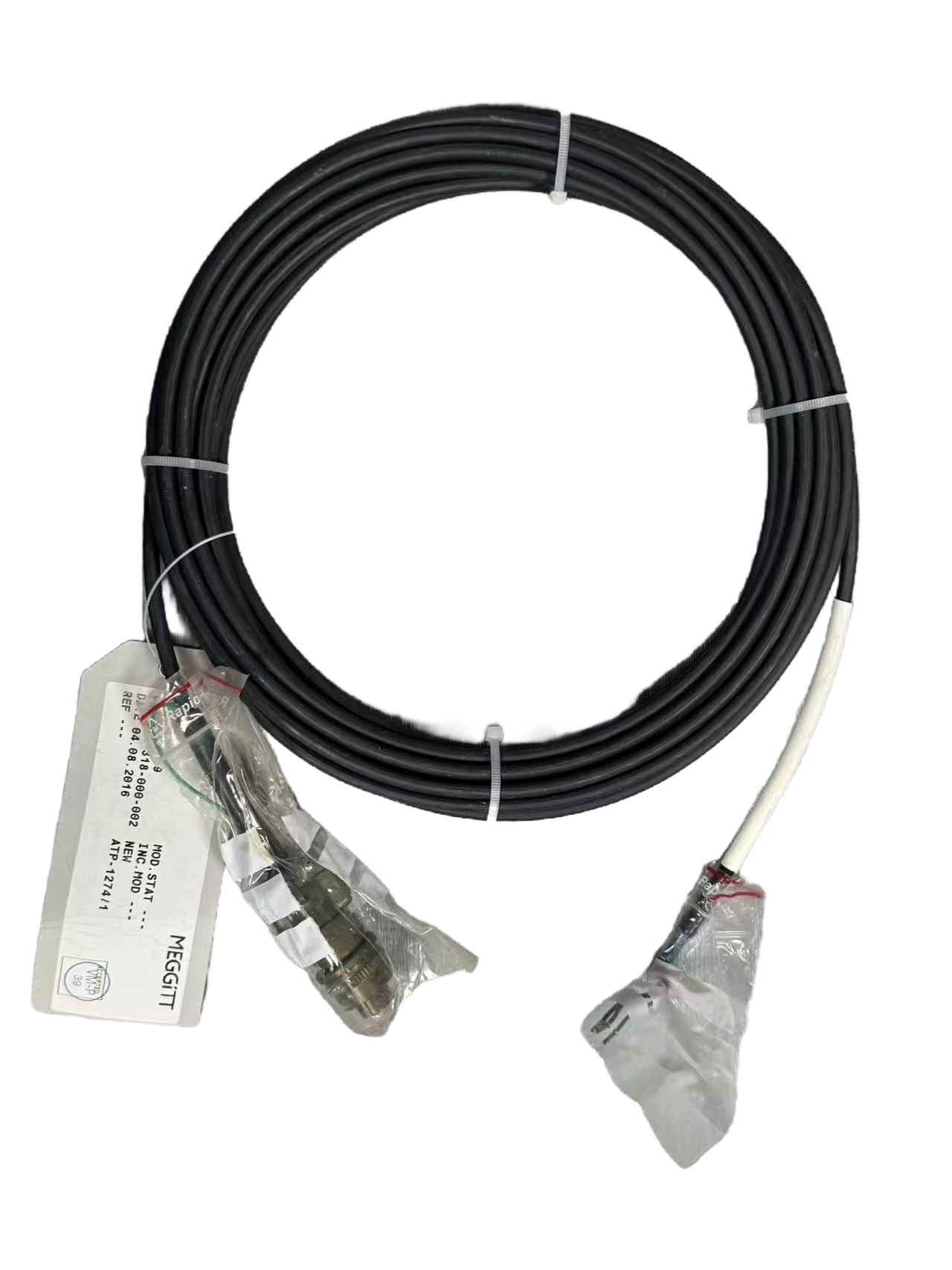

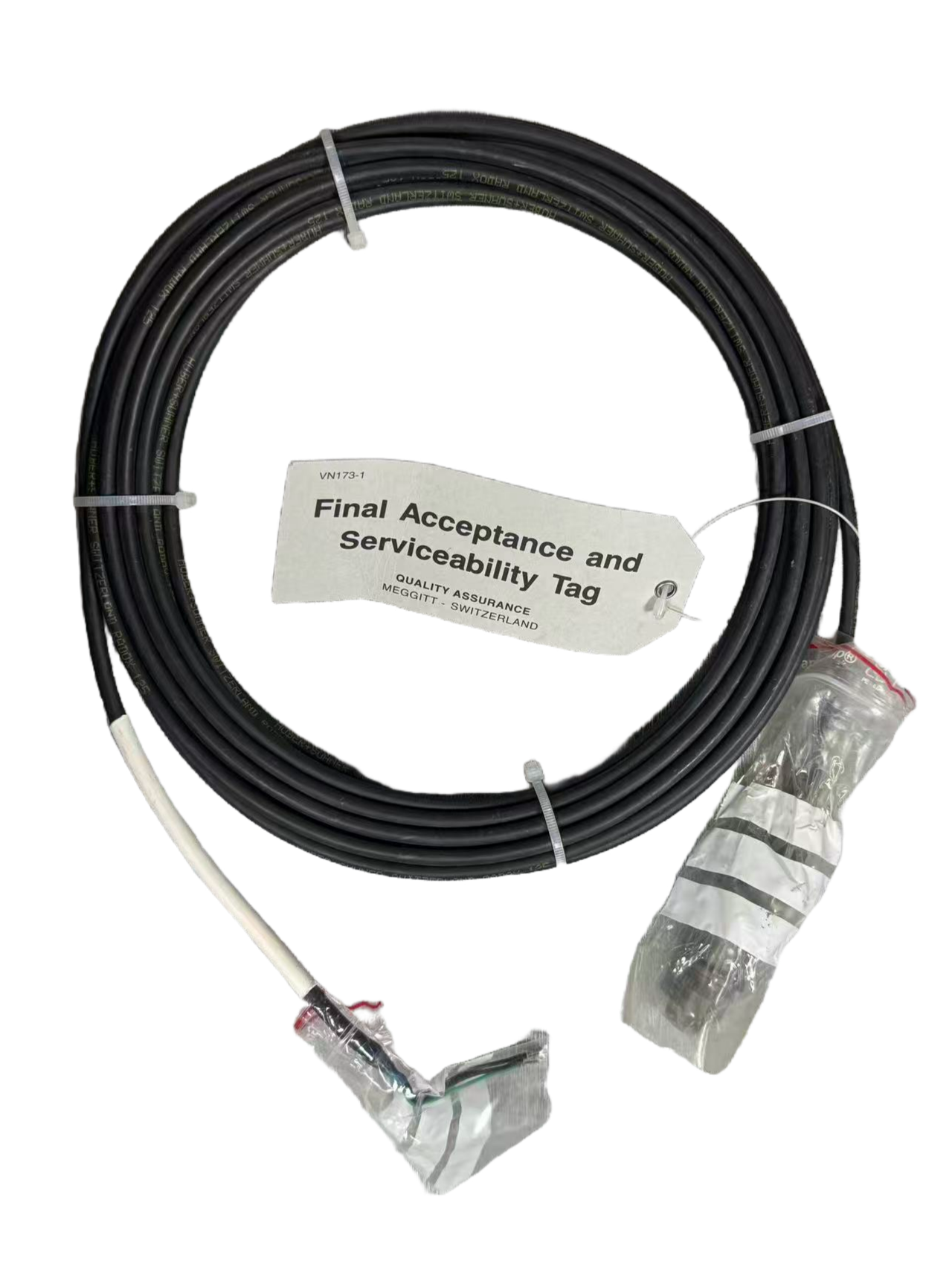

EC318 922-318-000-002/5000
Product Overview
The EC318 922-318-000-002/5000 is the official matching cable for the PV660 440-660-000-111 sensor, specifically designed for IEPE-type piezoelectric velocity sensors.
Key Features
- Cable Material: RADOX®125 High-Temperature Specialty Cable
- Connector: MIL-C/DTL-5015 2-conductor keyed threaded connector
- Length: 5000 mm (5 meters), custom lengths available
- Compatible with: PV660 piezoelectric velocity sensor
- Wiring standard: 2-wire shielded, compatible with IEPE constant-current power transmission
Technical Description
This standard version features a 2-conductor shielded design with keyed, screw-lock circular connectors, enabling integrated power and signal transmission. It perfectly matches the PV660's 2-wire wiring logic (Pin A+ for power and signal output, Pin B− for common), allowing direct connection between the sensor and the monitoring system without the need for additional adapters.
The "5000" in the cable model number denotes the standard length of 5,000 millimeters (5 meters), providing users with clear reference when selecting cable lengths.
Selecting Compatible Components
Application Case Study
Between 2021 and 2023, a Huaneng subsidiary purchased vibration sensor extension cables with specifications designated as EC318 922-318-000-002/8M (8 meters, with corrosion-resistant connectors) for use with CE680 vibration sensors. These cables are used in online vibration monitoring systems for auxiliary equipment such as steam turbines and fans in thermal power plants.
One end connects to the sensor via a MIL-C/DTL-5015 connector, while the other end connects to a TSI (Turbine Surveillance Instrumentation) card, enabling real-time acquisition and protection of vibration signals. The procurement specifically required corrosion-resistant connectors to withstand potential salt fog corrosion in coastal environments.
Product Specifications
| Brand Name | Other |
|---|---|
| Model | EC318 |
| Ordering Information | 922-318-000-002 |
| Catalog | Vibration Monitoring |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $600 |
| Warranty | 12 months |
| Lead Time | 3-5 work days |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Frequently Asked Questions
What is the EC318 922-318-000-002/5000?
It is a 2-conductor industrial connection cable designed specifically for the PV660 piezoelectric speed sensor. It uses RADOX®125 high-temperature-resistant cable, and the "5000" indicates a length of 5000 mm (5 meters).
Can it be used with sensors other than the PV660?
It is primarily designed for the PV660; however, it is also compatible with other piezoelectric velocity/acceleration sensors that use a 2-pin MIL-C/DTL-5015 interface or an IEPE interface.
How to choose between the EC318, EC319, EC602, and EC612?
EC318: Standard RADOX®125 cable, suitable for general high-temperature applications (recommended)
EC319: Splash-proof / sealed version, better suited for humid and spray environments
EC602: Standard ETFE cable, economical option
EC612: Features metal braided shielding for enhanced interference resistance
