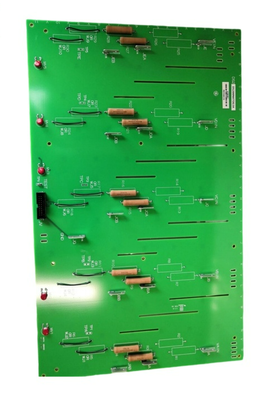

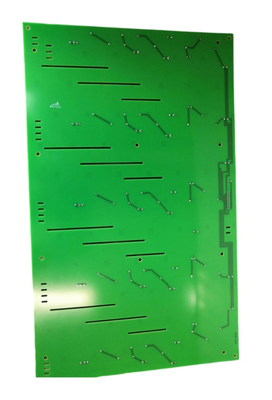

DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
제품 상세 정보
| 상표 | 제너럴일렉트릭 | 모듈 번호 | DS200NATOG2A |
|---|---|---|---|
| 목록 | 마크 5세 | 판매가 | $3500 |
| 상태 | 재고 있음 | 기원 | 미국 |
| 리드타임 | 3-5 영업일 | 보증 | 1년 |
| 무게 | 1KG |
제품 설명
DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
Product Overview
The DS200NATOG2A NATO board is a Voltage Feedback Scaling Board designed for demanding industrial environments requiring high-precision voltage feedback control.
Key Features
- Functional Acronym/Abbreviation: NATO
- Part-Specific Manual: GEI-100225
- Voltage Feedback Scaling Board
- Number of Resistors: 4
- Variant: G2
Technical Description
The core function of this item is to use a high-precision resistor network to attenuate high-voltage AC/DC signals from an SCR (thyristor rectifier) or IGBT bridge arm into low-voltage isolated feedback signals (typically 0-10 V DC) that the control system can process, thereby enabling the main control board to perform voltage closed-loop control and protection calculations.
The output signal from the circuit board is transmitted via five leads connected to a 20-pin ribbon connector. Additionally, several metal oxide varistors (MOVs) are included to prevent excessive output voltage in the event of a ribbon circuit break while input voltage is present. The load resistors required for operation are located on the included gate distribution board, not on the NATOG2A circuit board.
Application Fields
- Power Generation: Control systems for gas turbines and steam turbines
- Power Systems: Excitation and variable-frequency systems in power plants and substations
- Industrial Drives: High-power variable-frequency drives and DC speed control systems (such as the DC2000/FC2000 series)
- Process Industries: Process control in the petroleum, natural gas, chemical, paper, and mining industries
Product Specifications
| Brand Name | General Electric |
| Model | DS200NATOG2A |
| Catalog | Mark V |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $3500 |
| Warranty | 12 months |
| Processing Time | 3-5 work days |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Compatible Systems
- ABB: AC800M/DSQC/Bailey INFI 90
- Bently Nevada: 3500/3300 system
- GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
- Honeywell: TDC 2000/TDC3000/TPS/Security systems
- Schneider: Quantum 140 series
- Siemens: MOORE/6ES5/6GK/6DD/6AR Series
- Woodward: 505/505E/9905/2301D-ST series
- Yokogawa: CS3000 system
- Allen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
