> 상품 > 굽게 네바다 부속 > 고성능 부품 3500/22M Bently Nevada 3500 22 과도 데이터 인터페이스 기계 상태 모니터링

고성능 부품 3500/22M Bently Nevada 3500 22 과도 데이터 인터페이스 기계 상태 모니터링

분류:
굽게 네바다 부속
결제 방법:
티 / T는, 웨스턴 유니온
사양
브랜드:
벤틀리 네바다
항목 번호:
3500/22
타입:
PLC
제품 오르그인:
미국
서비스:
1년 보증
품질:
100% 새롭고 근원
배달 시간:
5-7 일
상태:
주식에서
하이 라이트:

굽게 네바다 3500 체계

,

3500 22m

소개



제품 : 고성능 부분 3500/22M 벤틀리 네바다 3500 22 일시 데이터 인터페이스 기계 컨디션 모니터링

기술 :



The 3500 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and GE’s System 1* machinery management software. The TDI combines the capability of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI operates in the RIM slot of a 3500 rack in conjunction with the M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient waveform data and pass this data through an Ethernet link to the host software. (Refer to the Compatibility section at the end of this document.) Static data capture is standard with the TDI, however using an optional Channel Enabling Disk will allow the TDI to capture dynamic or transient data as well. The TDI features improvements in several areas over previous communication processors and incorporates the Communication Processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies). For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the TDI. In addition to all the standard TDI functions, the TMR TDI also performs “monitor channel comparison”. The 3500 TMR configuration executes monitor voting using the setup specified in the monitor options. Using this method, the TMR TDI continually compares the outputs from three (3) redundant monitors. If the TDI detects that the information from one of those monitors is no longer equivalent (within a configured percent) to that of the other two monitors, it will flag the monitor as being in error and place an event in the System Event List.

가온은 상품을 판매합니다 :

SM203
SM416
8163-4002
8199-4001
PMP135-A1F01A1H
PMP135-A1F01A1S
PMP135-A1G01A2Q
NBB5-18GM50-E2
CSP-VI-D-V4-D-A2
913-F-22242D
APCI-3120-16-8
PCL-812PG
PCL-846A
319120-0200
321440-0200
MBPF-200S
1DI200Z-100-E
ECNT43-0B
HCR166-0
ECCP60-01B
HCMCIF-0B





사진 :

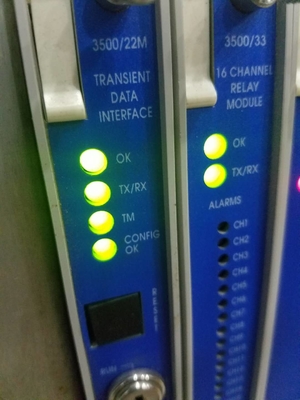

고성능 부품 3500/22M Bently Nevada 3500 22 과도 데이터 인터페이스 기계 상태 모니터링

고성능 부품 3500/22M Bently Nevada 3500 22 과도 데이터 인터페이스 기계 상태 모니터링







나와 연락하기 위해 환영하세요 :

미스터 브라운 루오
이메일 : sales1@nseauto.com
전화기 / 왓츠앱 / 위챗 :0086 18060984805
스카이프 :+8618060984805
QQ : 3131039261



나는 당신에게 가장 경쟁력있는 가격을 제공할 것입니다!





가격 요구를 보내세요
주식:
MOQ:
1 pc
